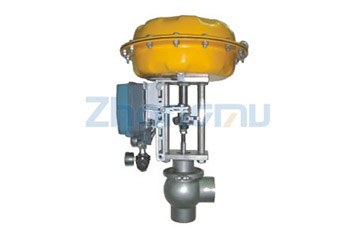

Health Angle type film regulator, suitable for high pressure difference are prone to flash cavitation occasions, is a high-performance single-seat regulating valve, solid sleeve to protect the body from flash and cavitation damage. Valve structure is compact, has S streamlined channel, small pressure drop loss, large flow, adjustable range. Valve core area is large, good vibration resistance.

Regulating valve leakage is in line with the ANSI B16.104 standards. Regulating valve with spring thin film actuator, its compact structure, big output force.

This product conforms to GB/T4213-92.

Technical parameters and performance

The valve body

Type Angle type single casting ball valve

Nominal size 32, 40, 50, 65, 80, 100, 10 kg inner ring sealing way hard rubber sealed ring sealing valve body material of 304 and 316 l connection type butt welding, thread, flange connection, ISO, DIN, 3 a, SMS, FF, RF, RJ, LC, standards, JIS, ANSI B16.5 B2201-1984-1981, 59 JB79 - such as on the bonnet type normal temperature (P) : 17 ~ + 150 ℃

Note: the working temperature of no more than allow range of various kinds of materials.

Gland type fast loading, bolt is tight
